RC Car


With Volvo S40 body


Another view

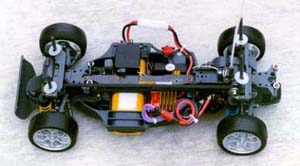

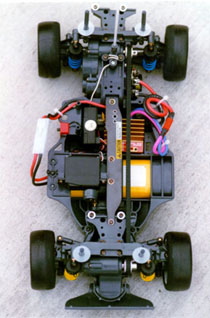

The standard-length TA03R chassis.

Link

Tower Hobbies Home Page
The R/C Web Directory
This is my first r/c car, Tamiya TA03R. Actually, it was TA03RS Porsche 911 GT1 but it's hard to find the body to fit the short chassis so I converted it to the normal length chassis, TA03R. I'm experimenting different kind of setup on unprepared asphalt surface. The following is the setup that work best for me now. With this setup the car is almost neutral in the turn. If you have a good setup on any kind of track, please email to me. I'll post the setup here.

General
Dimension width: 190 mm, length: 427 mm,
height: 117 mm, wheelbase: 255 mm
Weight 1.6 kg
Chassis Plastic Tub Style
Body Protoform Volvo S40 (BTCC'97 painting scheme)
Bearing/Bushing Full Ball Bearings
Drivetrain
Type Indirect Belt Drive
Differential Ball Differentials (Rear is tighter than front)
Suspension
Front Kit plastic shock (short) - 70wt oil, one hole piston
with Tamiya yellow tuned spring
Rear Kit plastic shock (normal)- 70wt oil, one hole piston
with Tamiya blue tuned spring
Wheels (F/R) Proline Warlock standard width
Tires (F/R) Proline S2 slick standard width
Camber (F/R) Kit standard
Toe (F/R) Kit standard
Electrics
Radio Futaba 2PCKA - AM 75 MHz
with dual rate steering
Receiver Futaba R122JE
Steering Servo Futaba S3003 - standard servo
ESC Tekin Rebel reversable
Motor Trinity Midnight 2 Stock



Running in my office parking lot.
